Hitec Servos

  • HS-422 Servo

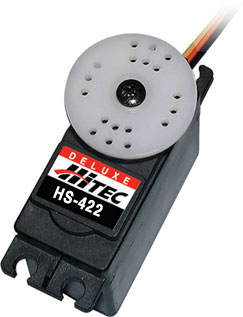

    Hitec HS-422

    Cored Metal Brush Motor
    Top/Resin Bushing Bearing

    Stall Torque at 4.8V
    45.82 oz/in. (3.3kg.cm)
    Stall Torque at 6.0V
    56.93 oz/in. (4.1kg.cm)
    Speed at 4.8V
    0.21sec/60 degrees at no load
    Speed at 6.0V
    0.16sec/60 degrees at no load
    Current Drain (4.8V)
    8mA/idle and 150mA no load operating
    Current Drain (6.0V)
    8.8mA/idle and 180mA no load operating
    Dimensions
    1.59" x 0.77"x 1.44" (40.6 x 19.8 x 36.6mm)
    Weight
    1.6oz (45.5g)
    $12.95
    Purchase
  • HS-225MG

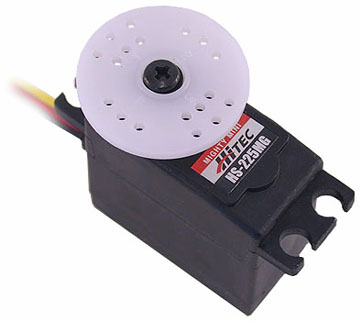

    Hitec HS-225MG

    Single BB Metal Gear

    Torque at 4.8V
    54 oz/in (3.9kg-cm)
    Torque at 6.0V
    67.00 oz/in (4.9kg-cm)
    Speed at 4.8V
    60° speed: .14 sec
    Speed at 6.0V
    60° speed: .11 sec
    Dimensions
    1.57" x 0.79"x 1.44" (40 x 20 x 36.5mm)
    Weight
    1.52oz (43g)
    $43.95
    Purchase
  • Hitec HS-475HB

    Hitec HS-475HB

    3 Pole Motor
    KARBONITE Gear Ball Bearing Servo

    Torque at 4.8V
    61.1 oz-in (4.4 kg-cm)
    Torque at 6.0V
    76.37 oz-in (5.5 kg-cm)
    Speed at 4.8V
    0.23 sec/60°
    Speed at 6.0V
    0.18 sec/60°
    Dimensions
    1.52 x 0.77 x 1.41in. / 38.8 x 19.8 x 36mm
    Weight
    1.41 ounce (40g)
    $17.99
    Purchase
  • HiTec HS-475HB Heavy Duty Servo

    Hitec HS-645MG

    3 Pole Motor
    Metal Gear Dual Ball Bearings

    Torque at 4.8V
    106.93 oz-in (7.7kg-cm)
    Torque at 6.0V
    133.31 oz-in (9.6kg-cm)
    Speed at 4.8V
    0.24 sec/60°
    Speed at 6.0V
    0.19 sec/60°
    Dimensions
    1.59 x 0.77 x 1.48in. / 40.6 x 19.8 x 37.8mm
    Weight
    2.11oz (60g)
    $39.99
    Purchase
  • Hitec HS-805BB

    Hitec HS-805BB Mega 1/4 Scale (Giant Scale Servo)

    Dual Ball Bearings
    Hitec Custom IC
    Water Tight Case (not water-proof)

    Torque at 4.8V
    224 oz-in (16.0kg-cm)
    Torque at 6.0V
    343 oz-in (24.7kg-cm)
    Speed at 4.8V
    0.20 sec
    Speed at 6.0V
    0.14 sec
    Dimensions
    2.6"x 1.2"x 2.3" 66 x 30 x 58 mm
    Weight
    5.4 oz. 152 g.
    $43.99
    Purchase
