UROV\UAV Thrusters

UAV/UROV Thruster
Price $599

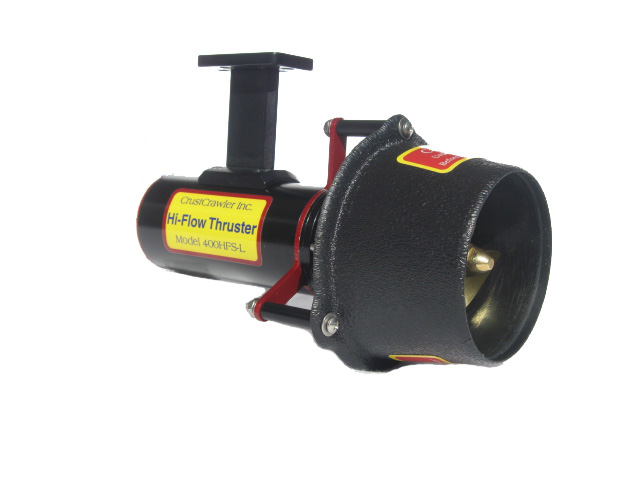

(400HFS-L Thruster shown with
optional mounting bracket)

Ask about our School and University
discounts!

Hi-Flow Thruster 400HFS-L Data Sheet 400HFS-L User's Guide and Warranty 400HFS-L Mounting Bracket Specifications StockBridge High School Project
Banner Discovery CH

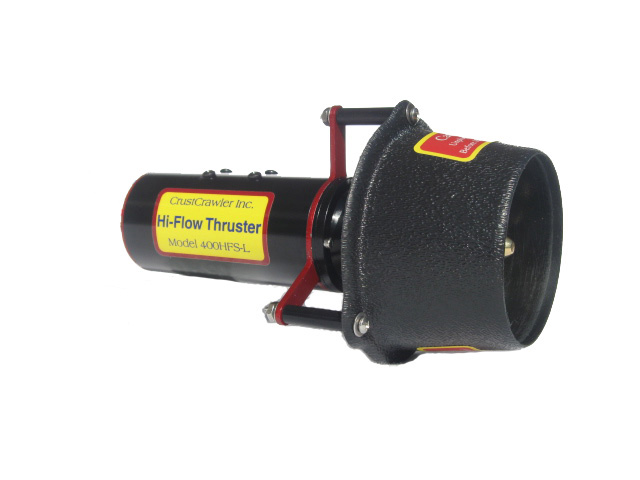

400HFS-L UROV/ ROV Thruster Specs and Downloads

  • 300ft (100m) depth rating
  • Compact, Powerful Design (6.25 in.(158mm) long)
  • Type 37 Kort Nozzle engineered for maximum thrust
  • Features the same fluoroloy lip seal technology as used on our 600HF Thrusters
  • 2.36"(60mm)”, 4 blade, brass propeller mated with a aluminum propeller adapter generates 15 pounds of thrust from 24 to 50 volts
  • Propeller is efficient in both forward and reverse thrust
  • Type II hard anodized finish for maximum corrosion resistance in salt and fresh water
  • Rugged 6061 aluminum thruster housing
  • Powerful 400W brushless motor with a 4.28:1 gear ratio
  • Features our new, Pre-sealed, 3 wire connectors to any brushless motor controller
  • Operates in all of the popular UAV/ROV voltage ranges from 12 to 50 volts
  • High reliablity, low maintenance design
  • Optional Thruster Mounting Bracket for easy "bolt on" installations
  • Excellent choice for MATE, Robosub and FIRST robotic competitions!
  • Our Customers Include: SeaBotix, Sea-Con, Naval Research Laboratory, U.S Naval Academy, Institute of Maritime Technology, Alyeska Pipeline Service Alaska, DHI Water and Environment, Doetsch Environmental, Cranston Technical Center, Georgia Tech, U.S Forest Service Products Laboratory and many more!
Are you a School, University or Business? Click here to go to our purchase order page with information on how to place your purchase order with Crustcrawler

400HFS-L Hi-Flow Thruster and ETC Configuration Software

Underwater propulsion Underwater propulsion Throttle Curve Options Brake Curve
  • UROV/UAV Thruster

    Hi-Flow Thruster - right hand propeller (HFT-R)

    Ships with the following:

    • (1) Assembled and tested 400HFS-L Hi-Flow Thruster with right hand propeller
    • Note: Single and dual thruster purchases require the purchase of our grease and applicator package shown below.

    See page 13 of the user's guide for a description of left and right hand configured thrusters.

    $599.00
    Purchase
  • UROV/UAV Thruster

    Hi-Flow Thruster - left hand propeller (HFT-L)

    Ships with the following:

    • (1) Assembled and tested 400HFS-L Hi-Flow Thruster with left hand propeller
    • Note: Single and dual thruster purchases require the purchase of our grease and applicator package shown below.

    See page 13 of the user's guide for a description of left and right hand configured thrusters.

    $599.00
    Purchase
  • UROV/UAV Thruster

    Hi-Flow Thruster 3-Pack

    Ships with the following:

    • (3) Assembled and tested 400HFS-L Hi-Flow Thrusters
    • (1) 8oz.(277grams) White Lithium Grease and Applicator

    See page 13 of the user's guide for a description of left and right hand configured thrusters.

    $1,797.00
    Purchase
  • UROV/UAV Thruster

    Hi-Flow Thruster 6-Pack

    Ships with the following:

    • (6) Assembled and tested 400HFS-L Hi-Flow Thrusters
    • (1) 8oz.(277grams) White Lithium Grease and Applicator

    See page 13 of the user's guide for a description of left and right hand configured thrusters.

    $3,594.00
    Purchase
  • underwater thruster controller

    Phoenix ICE2 60HV UROV Electronic Thrust Controller 50V Rating - Potted

    Ships with the following:

    • (1) Phoenix ICE2 60HV 50V UROV Waterproof Programmable Electronic Thrust Controller (Max 50V) with data logging
    • Contains custom firmware developed specifically for Crustcrawler's 400HFS-L and 600HF thrusters with foward/reverse, soft start and reverse throttle amount features
    • New data logging feature provides data aqusition for Voltage, Ripple, Current, Amp hrs., Watts, Temperature, motor RPM, Throttle In and Power Out
    • Dimensions - 4.75in X 2.71in X 1.50in (12.06cm X 6.88cm X 3.81cm)
    (1) Phoenix Users Guide
    $299.00
    Purchase
  • underwater thruster controller

    Phoenix ICE2 60HV UROV Electronic Thrust Controller 3- Pack - Potted

    Ships with the following: Save 10%

    • (3) Phoenix ICE2 60HV UROV Waterproof, Programmable Electronic Thrust Controllers (Max 50V) with data logging
    • Contains custom firmware developed specifically for Crustcrawler's 400HFS-L and 600HF thrusters with foward/reverse, soft start and reverse throttle amount features
    • New data logging feature provides data aqusition for Voltage, Ripple, Current, Amp hrs., Watts, Temperature, motor RPM, Throttle In and Power Out
    (1) Phoenix User Guide
    $807.00
    Purchase
  • underwater thruster controller

    Phoenix ICE2 60HV UROV Electronic Thrust Controller - Non Potted

    Ships with the following:

    • (1) Phoenix ICE2 60HV UROV Programmable Electronic Thrust Controller (Max 50V) with data logging
    • Contains custom firmware developed specifically for Crustcrawler's 400HFS-L and 600HF thrusters with foward/reverse, soft start and reverse throttle amount features
    • New data logging feature provides data aqusition for Voltage, Ripple, Current, Amp hrs., Watts, Temperature, motor RPM, Throttle In and Power Out
    (1) Phoenix User Guide Phoenix Dimensional Information
    $209.95
    Purchase
  • underwater thruster controller

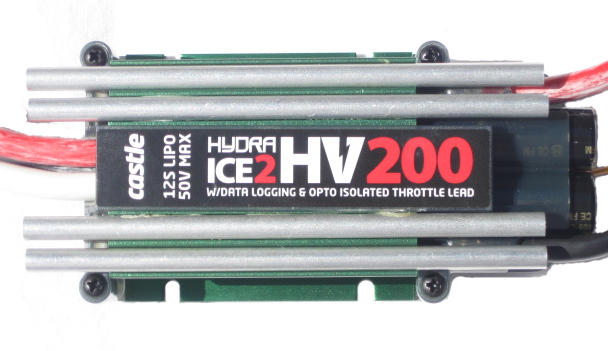

    Hydra ICE2 200 HV2 with Data logging New!

    Ships with the following:

    • (1)Hydra ICE2 200 HV2 Programmable Electronic Thrust Controller with data logging(Max 50v) with data logging
    • New data logging feature provides data aqusition for Voltage, Ripple, Current, Amp hrs., Watts, Temperature, RPM, Throttle In and Power Out
    (1) Hydra ICE 200 HV2 Users Guide
    $369.00
    Purchase
  • Programming Cable

    Electronic Thrust Controller Programming Kit (etc-pc)

    Ships with the following:

    • (1) Electronic Thrust Controller Programming kit with USB interface
    • (1) Instruction manual
    $39.00
    Purchase
  • PSC

    Parallax Propeller Servo Controller

    Ships with the following:

    • Control up to (16) 400HFS thrusters from just (1) Parallax Propeller Servo Controller!
    • (1) Parallax Propeller Servo Controller
    • Parallax Propeller Servo Controller Users Guide
      •
    • The Parallax Servo Controller Interace(PSCI) is a Windows application that interfaces directly with the Parallax Propeller Servo Controller (PSC). PSCI provides quick and easy control of up to 16 thrusters (PSCI manua)
    $39.95
    Purchase
  • Programming Cable

    Sea-Con Connector -18" (HFT-con)

    Ships with the following:

    • (1) Sea-Con Connector for use as a hull penetrator with 18" 16AWG wires
    • Specifications: 1/2"-20 thread, .75" hull penetration, .98" Rubber pigtail diameter
    $159.00
    Purchase
  • Programming Cable

    Sea-Con Connector for Hull Penetrator with 30” cable (HFT-cable)

    Ships with the following:

    • (1) 30" Sea-Con Cable
    • Connector has (3) 16AWG wires
    • ** NOTE This is an optional connector and is not required to connect the 400HFS to your ROV power and control circuitry
    $89.00
    Purchase
  • Mounting Bracket

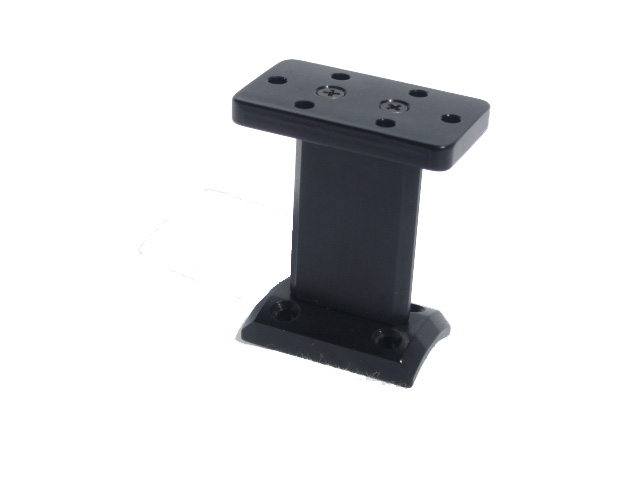

    Thruster Mounting Bracket

    Ships with the following: New!

    • (1) 400HFS-L Thruster Mounting Bracket
    • (4 each) 1" (25.41mm) #4 (4/40) Mounting screws, nuts and lock-washers
    400HFS Thruster Mounting Bracket Technical Information
    $69.00
    Purchase
  • Kort Nozzle

    Spare Kort Nozzle

    Ships with the following:

    • (1) Spare Kort Nozzle
    $29.00
    Purchase
  • ROV Grease

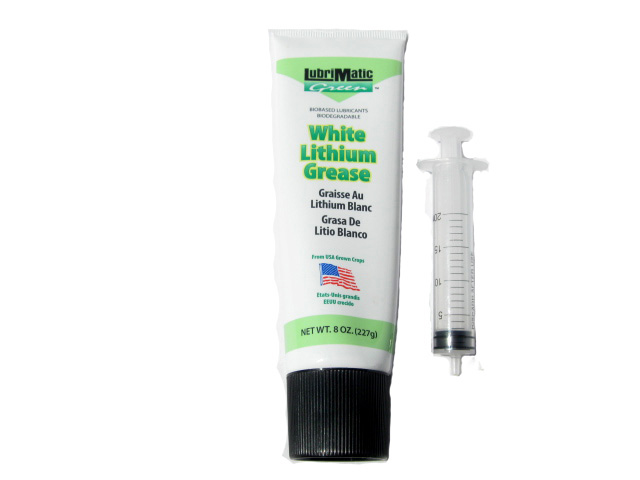

    White Lithium Grease

    Ships with the following:

    • (1) 8oz.(277grams) White Lithium Grease
    • (1) Grease applicator
    • Note: The grease and applicator kit is required for all 600HF and 400HFS-L Thrusters
    $14.95
