AX-12 Dual Robotic Gripper

AX-12 Dual Gripper

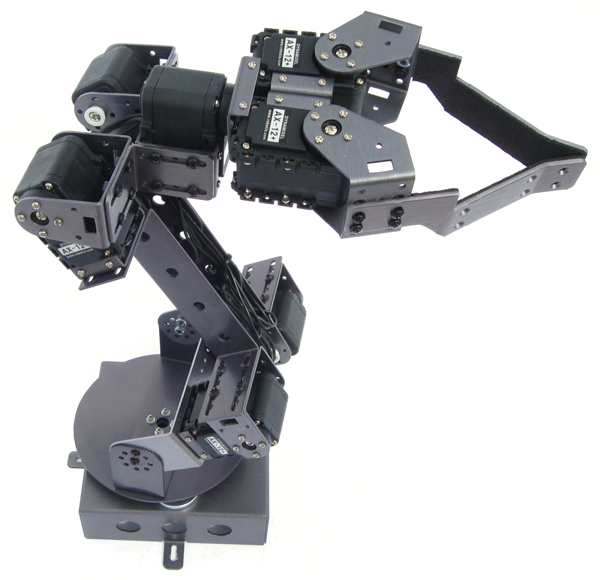

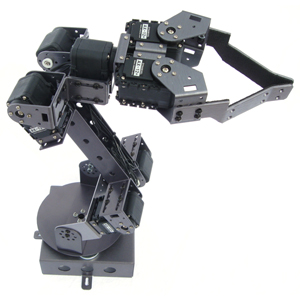

Photo shows Dual Gripper on AX-12 Smart Arm.
AX-12 Smart Arm not included in this kit.

Hardware kit - $69.00

Purchase

AX-12 Dual Gripper

The AX-12 Dual robotic arm gripper design is ideal for a myriad of robotic arm manipulation tasks that can be applied to all types of shapes. The 9” gripper opening and dual drive system which can accept either the AX-12A or the AX-18A servos, makes this our most versatile gripper option for the AX-12 Smart Robotic Arm. All aluminum parts of the AX-12 Dual Gripper have our unique integrated PEM nuts which makes for quick and easy assembly.

AX-12 Dual Gripper Documentation

Assembly Guide

AX-12 Dual Gripper Technical Specifications

  • Gripper Maximum opening – 9”
  • Gripper Length – 4”
  • Gripper Drive train - (2) AX-12A or AX-18A Servos
  • Material – 5052 Aluminum / Type II hard anodized - Gun barrel gray

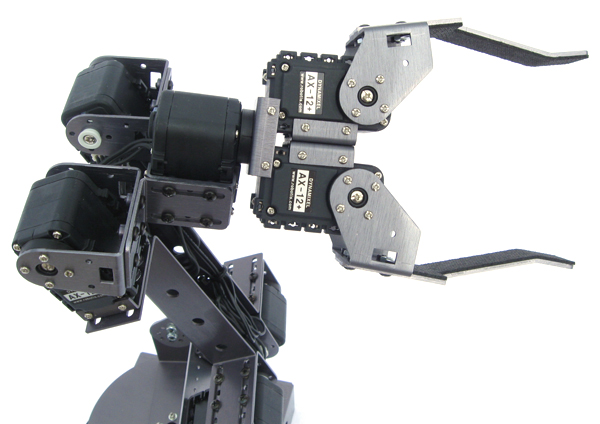

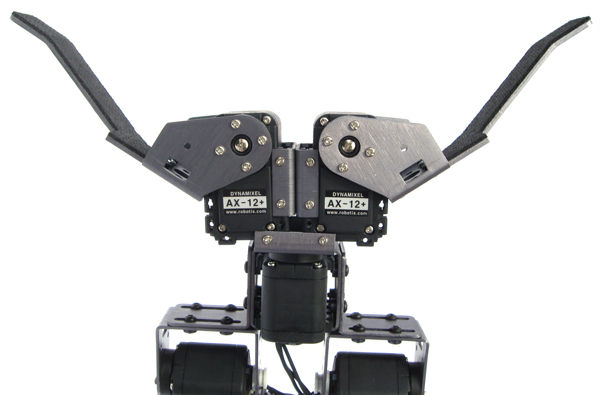

AX-12 Dual Gripper Pictures

Dual Gripper Dual Gripper Dual Gripper
  • FlexiForce Sensor

    FlexiForce Sensor

    The active sensing area is a .375" diameter circle at the end of the sensor. The conductive leads are easy to connect to a breadboard or through-hole area. The Flexiforce has an ideal output for A/D conversion - 0V is no force and 4.2V is 100 lbs. The RCTIME command may be used with a LOOKUP table or calibration formula to execute some math to make the output useful.

    Flexi Force Documentation and Code for the STAMP

    $34.95
    Purchase
