Crustcrawler Pro-Series Robotic Arm Components

Crustcrawler Pro-Series Robotic Arm Components

The Crustcrawler Pro-Series of robotic arm components are ideal for customers want to custom build their own robotic arm that meets their specific length and torque requirements. Key component features include:

  • Compatible with the complete line of Robotis AX, MX and RX series of smart actuators
  • Build a robotic arm to your specifications for length and torque requirements
  • Three Turntables to choose from
  • Featuring fixed and adjustable length axis to axis girders
  • Available in single or dual axis configurations
  • All Pro-Series components can be configured in any order when building the robotic arm
  • Choose from CrustCrawlers line of robotic grippers or add your own
  • Rugged, all aluminum construction with a scratch resistant Type II hard anodized finish
  • All shipments include access to the fully illustrated CrustCrawler Pro-Series Builders Guide
  • An excellent choice for lite industrial, lab, education and research applications
CrustCrawler Pro-Series Technical Reference Guide
Are you a School, University or Business? Click here to go to our purchase order page with information on how to place your purchase order with Crustcrawler

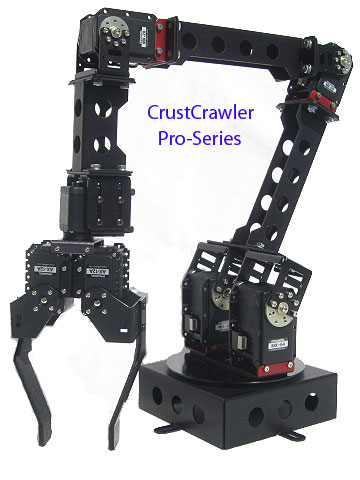

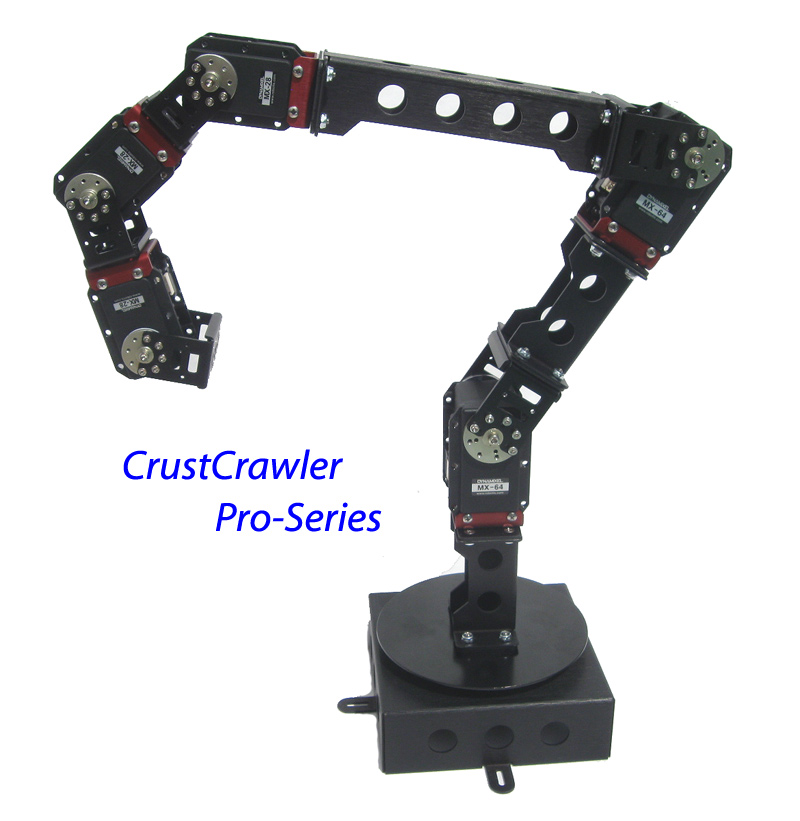

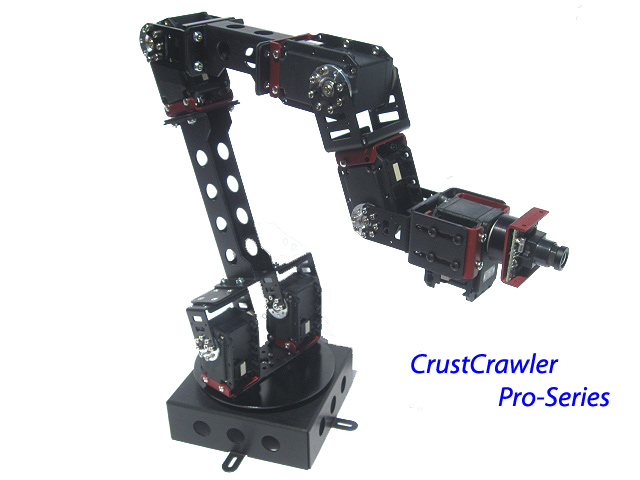

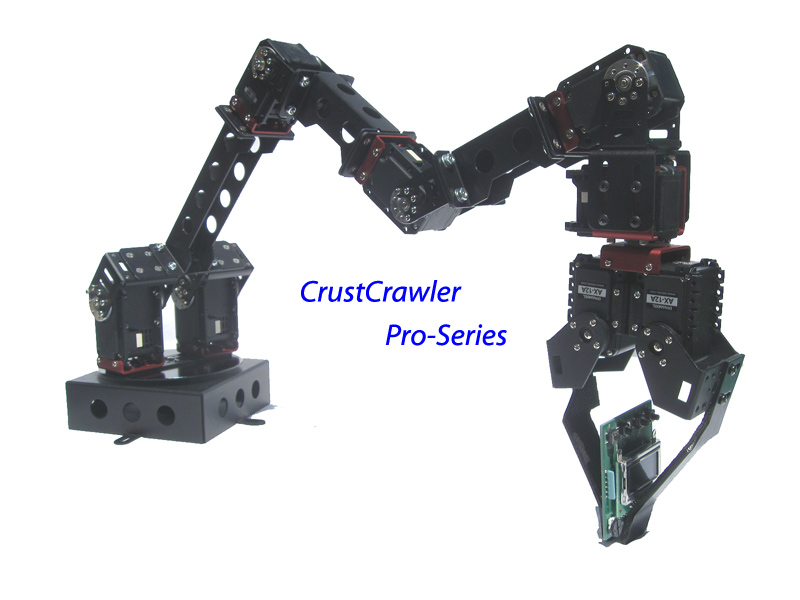

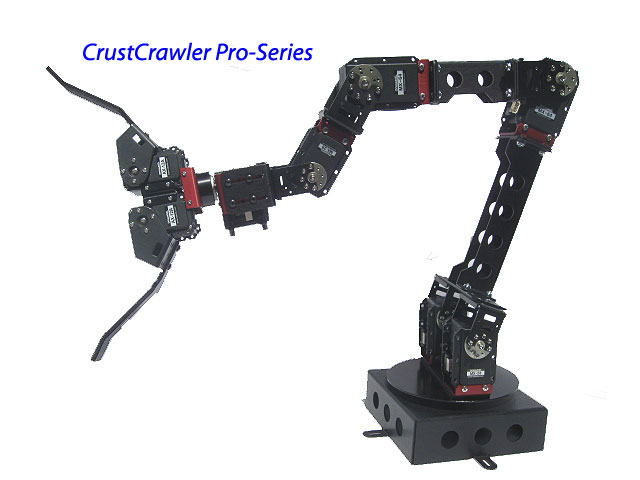

Sample Configurations

Pro-Series Robotic Arm Pro-Series Robotic Arm Pro Series Robotic Arm Pro Series Robotic Arm Pro Series Robotic Arm

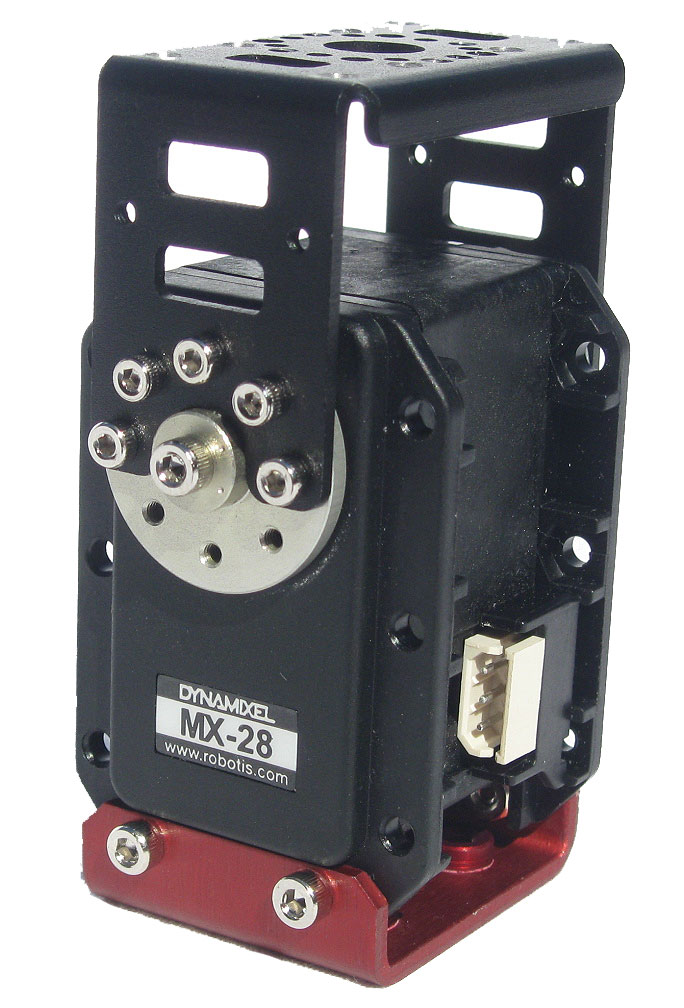

  • MX-28 Single Axis Kit

    DMX28SA

    • Contains (1) Complete MX-28 Single Axis Kit
    • Compatible with the RX-28(HN07-N101 Type), MX-28R, MX-28T Actuators
    • Stall Torque - 439 oz.in / 3.1 Nm
    • Dimensions = 2.91in.(7.39cm) H X 1.89in(4.8cm) W
    • Weight = 3.4 oz.
    • Material - Aluminum
    • Finish - Hard Anodized Black / Red
    With R-Type Servos
    $275.00
    Purchase
    With T-Type Servos
    $268.00
    Purchase
    No Servos
    $49.00
    Purchase

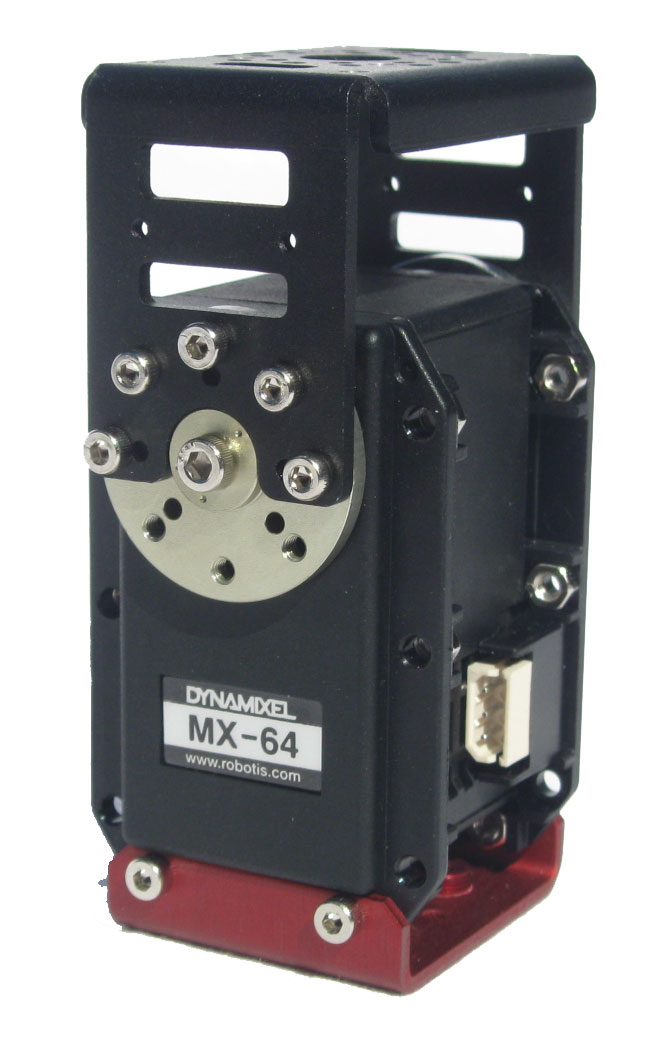

  • MX-64 Single Axis Kit

    MX64SA

    • Contains (1) Complete MX-64 Single Axis Kit
    • Compatible with the RX-64(HN05-N101 Type), MX-64R, MX-64T Actuators
    • Stall Torque - 1033 oz.in / 7.3 Nm
    • Dimensions = 3.50in.(8.89cm) H X 2.21in.(5.6cm) W
    • Weight = 6 oz.
    • Material - Aluminum
    • Finish - Hard Anodized Black / Red
    With R-Type Servos
    $364.00
    Purchase
    With T-Type Servos
    $358.00
    Purchase
    No Servos
    $59.00
    Purchase
  • MX-106 Single Axis Kit

    MX106SA

    • Contains (1) Complete MX-106 Single Axis Kit
    • Compatible with the MX-106R, MX-106T Actuators
    • Stall Torque - 1,416 oz.in / 10 Nm
    • Dimensions = 3.6in (9.14cm) H X 2.45in (6.22cm)
    • Weight = 6.9oz.
    • Material - Aluminum
    • Finish - Hard Anodized Black / Red
    With R-Type Servos
    $558.00
    Purchase
    With T-Type Servos
    $552.00
    Purchase
    No Servos
    $59.00
    Purchase

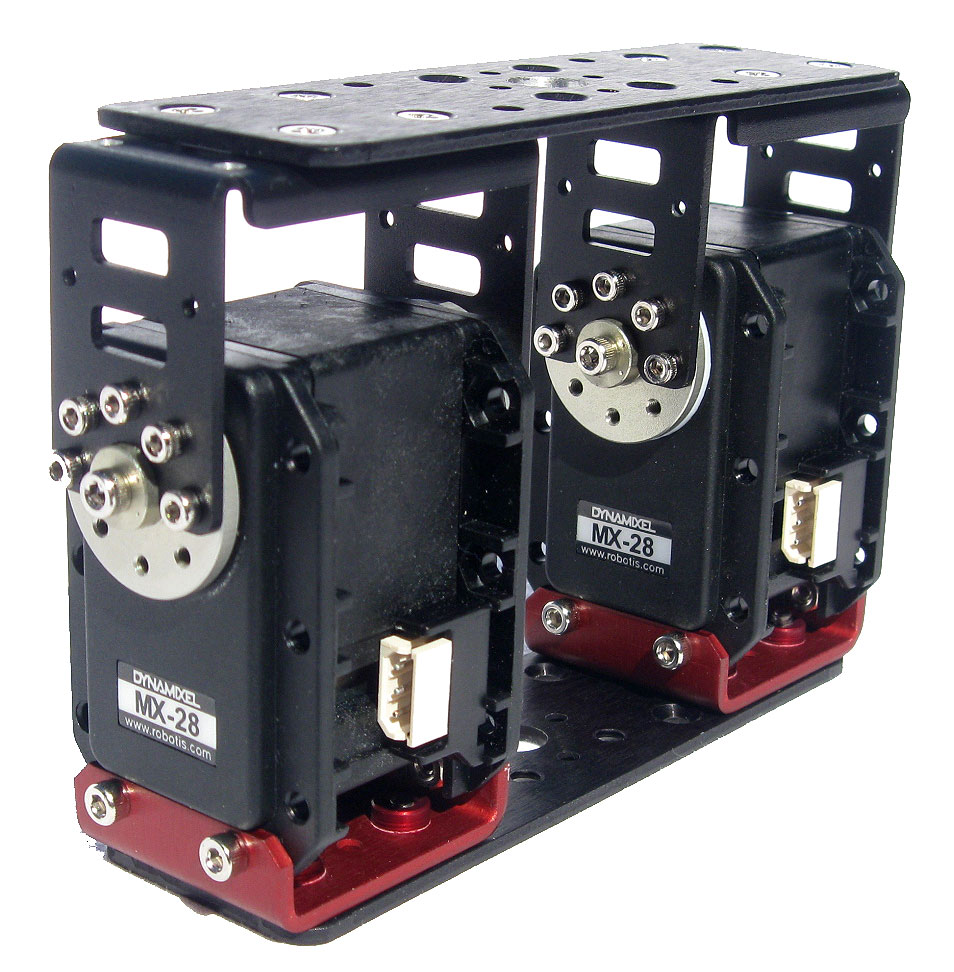

  • MX-28 Dual Axis Kit

    MX28DA

    • Contains (1) Complete MX-28 Dual Axis Kit
    • Compatible with the RX-28(HN07-N101 Type), MX-28R, MX-28T Actuators
    • Stall Torque - 878 oz.in / 6.2 Nm
    • Dimensions = 3.10in.(7.87cm) H X 4.94in.(12.54cm) W
    • Weight = 8.10oz.
    • Material - Aluminum
    • Finish - Hard Anodized Black / Red
    With R-Type Servos
    $609.99
    Purchase
    With T-Type Servos
    $599.00
    Purchase
    No Servos
    $159.00
    Purchase
  • MX-64 Dual Axis Kit

    MX64DA

    • Contains (1) Complete MX-64 Dual Axis Kit
    • Compatible with the RX-64(HN05-N101 Type), MX-64R, MX-64T Actuators
    • Stall Torque - 2,067 oz.in / 14.6 Nm
    • Dimensions = 3.68in.(9.34cm) H X 5.10in.(12.95cm) W
    • Weight = 13.2oz.
    • Material - Aluminum
    • Finish - Hard Anodized Black / Red
    With R-Type Servos
    $789.00
    Purchase
    With T-Type Servos
    $778.00
    Purchase
    No Servos
    $179.00
    Purchase
  • MX-106 Dual Axis Kit

    MX106DA

    • Contains (1) Complete MX-106 Dual Axis Kit
    • Compatible with the MX-106R and MX-106T Actuators
    • Stall Torque - 2,832 oz.in / 20 Nm
    • Dimensions = 3.79in. (9.62cm) H X 5.32in (13.10cm)
    • Weight = 15oz.
    • Material - Aluminum
    • Finish - Hard Anodized Black / Red
    With R-Type Servos
    $1,178.00
    Purchase
    With T-Type Servos
    $1,166.00
    Purchase
    No Servos
    $179.00
    Purchase
  • Wrist Rotate kit - AX Series

    WristRotateAX

    • Contains (1) Complete AX Series Wrist Rotate Kit with RX/MX-28 angle bracket
    • Compatible with the AX-12A and AX-18A Actuators
    • Stall Torque - AX-12A - 212.41 oz.in / 1.5 Nm
    • Stall Torque - AX-18A - 254.9 oz.in / 1.8 Nm
    • Weight = 3.5oz.
    • Material - Aluminum
    • Finish - Hard Anodized Black
    With AX-12A Servos
    $99.00
    Purchase
    With AX-18a Servos
    $149.00
    Purchase
    No Servos
    $54.99
    Purchase

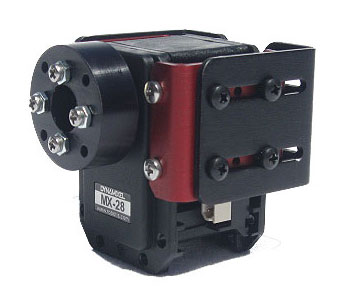

  • Wrist Rotate kit - RX/MX-28 Series

    WristRotate28

    • Contains (1) Complete RX/MX Series Wrist Rotate Kit with RX/MX-28 Angle Bracket
    • Compatible with the RX-28(HN07-N101 Type), MX-28R, MX-28T Actuators
    • Stall Torque - 439 oz.in / 3.1 Nm
    • Weight = 4.5oz.
    • Material - Aluminum
    • Finish - Hard Anodized Black / Red
    With R-Type Servos
    $284.00
    Purchase
    With T-Type Servos
    $279.00
    Purchase
    No Servos
    $59.99
    Purchase

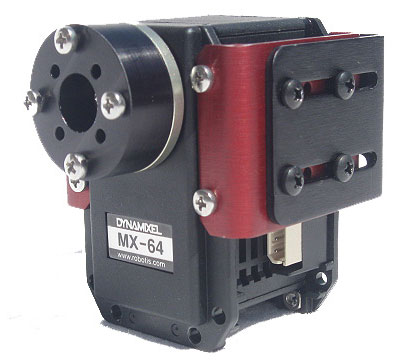

  • Wrist Rotate kit - RX/MX-64 Series

    WristRotate64

    • Contains (1) Complete RX/MX Series Wrist Rotate Kit with RX/MX-64 Angle Bracket
    • Compatible with the RX-64(HN05-N101 Type), MX-64R, MX-64T Actuators
    • Stall Torque - 1033 oz.in / 7.3 Nm
    • Weight = 6.6oz.(MX-64) / 7.4oz.(MX106)
    • Material - Aluminum
    • Finish - Hard Anodized Black / Red
    With R-Type Servos
    $369.00
    Purchase
    With T-Type Servos
    $364.00
    Purchase
    No Servos
    $64.99
    Purchase
  • Wrist Rotate kit - MX-106 Series

    WristRotate106

    • Contains (1) Complete RX/MX Series Wrist Rotate Kit with MX-106 Angle Bracket
    • Compatible with the MX-106R and MX-106T Actuators
    • Stall Torque - 1,416 oz.in / 10 Nm
    • Weight = 6.6oz.(MX-64) / 7.4oz.(MX106)
    • Material - Aluminum
    • Finish - Hard Anodized Black / Red
    With R-Type Servos
    $564.00
    Purchase
    With T-Type Servos
    $559.00
    Purchase
    No Servos
    $64.99
    Purchase

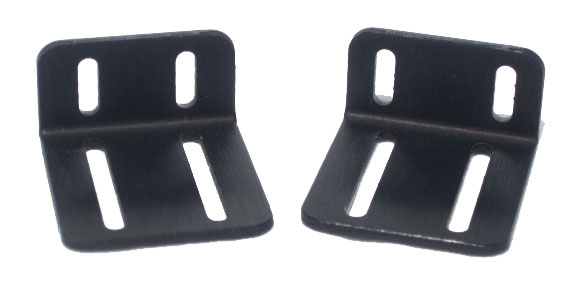

  • MX-64/106 Axis to MX-28 Wrist Rotate Adapter

    MX-64/106 To MX-28 Adapter

    • Contains (1) Pair of MX-64/106 to MX-28 Angle Brackets
    • This part is required when your transitioning from an MX-64 or MX106 Single Axis to an MX-28 Wrist Rotate Assembly or from a girder to the MX-28 Wrist Rotate Assembly
    • Material - Aluminum
    • Finish - Hard Anodized Black
    With R-Type Servos
    $11.99
    Purchase

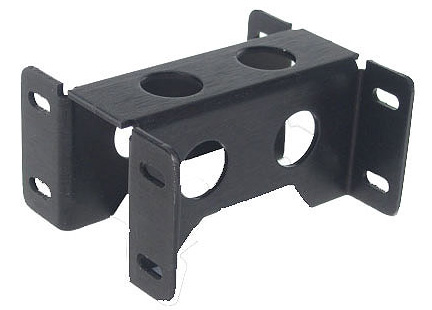

  • 2.5in. (6.35cm) Girder

    2.5Girder

    • Contains (1) 2.5in (6.35cm) Girder
    • (1) Mounting kit
    • Material - Aluminum
    • Finish - Hard Anodized Black
    • Weight - .8oz.
    $23.00
    Purchase

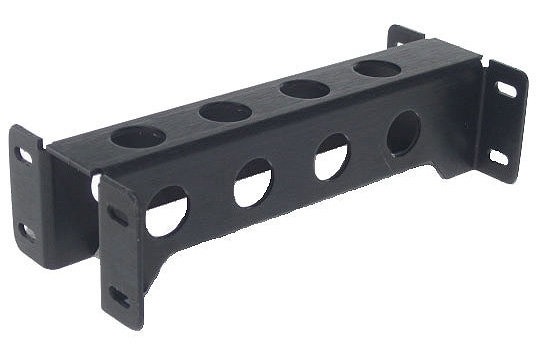

  • 5in. (12.7cm) Girder

    5girder

    • Contains (1) 5 in. (12.7cm) Girder
    • (1) Mounting kit
    • Material - Aluminum
    • Finish - Hard Anodized Black
    • Weight - 1.3oz.
    $29.00
    Purchase

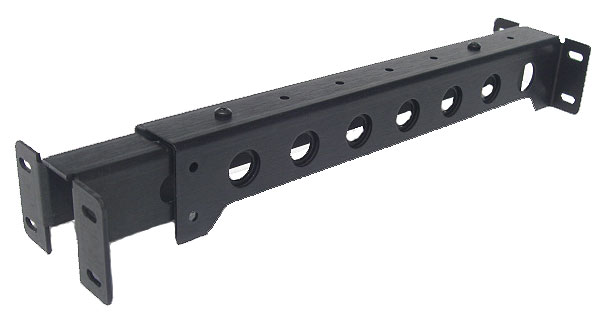

  • 8.31in.(21.11cm) to 13.31in.(33.81cm) Adjustable Girder

    adjustgirder

    • Contains (1) adjustable 8.31in. (21.11cm) to 13.21 in. (33.81cm) Girder
    • (1) Mounting kit
    • Material - Aluminum
    • Finish - Hard Anodized Black
    • Weight - 3.9oz.
    $43.00
    Purchase

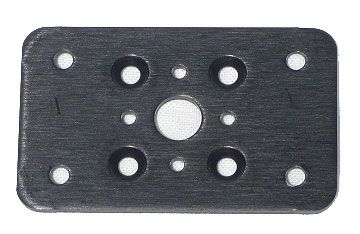

  • Single Axis Mounting Plate

    Singleaxismount

    • This plate is required any time a single axis is going to be connected to one end of the axis to axis girder.
    • Contains (1) Single Axis Mounting Plate
    • (1) Mounting kit
    • Material - Aluminum
    • Finish - Hard Anodized Black
    • Weight - .26oz.
    $15.00
    Purchase
  • MX-28 Pro-Series Turntable

    MX28trntbl

    • Contains (1) Complete Pro-Series MX-28 Turntable Hardware Kit
    • Compatible with the MX-28T / MX-28R or RX-28 (N-101 type only) actuators
    • Sealed, self lubricating turntable bearing support
    • (1) Turntable spacer and mounting kit
    • Dimensions = 4.5in X 4.5in X 1.50in (11.43cm X 11.43cm X 3.81cm)
    • Mounting Tabs - 5.25in.(13.33cm) center to center
    • Material - Aluminum
    • Finish - Hard Anodized Black
    With R-Type Servo
    $354.00
    Purchase
    With T-Type Servo
    $348.00
    Purchase
    Hardware Kit Only
    $129.00
    Purchase
  • MX-64 Pro-Series Turntable

    MX64trntbl

    • Contains (1) Complete Pro-Series MX-64 Turntable Hardware Kit
    • Compatible with the MX-64T / MX-64R or RX-64 (N-101 type only) actuators
    • Sealed, self lubricating turntable bearing support
    • (1) Turntable spacer and mounting kit
    • Dimensions = 4.5in X 4.5in X 1.70in (11.43cm X 11.43cm X 4.31cm)
    • Mounting Tabs - 5.25in.(13.33cm) center to center
    • Material - Aluminum
    • Finish - Hard Anodized Black
    With R-Type Servo
    $449.00
    Purchase
    With T-Type Servo
    $439.00
    Purchase
    Hardware Kit Only
    $169.00
    Purchase
  • MX-106 Pro-Series Turntable

    MX106trntbl

    • Contains (1) Complete Pro-Series MX-106 Turntable Hardware Kit
    • Compatible with the MX-106T and MX-106R actuators
    • Sealed, self lubricating turntable bearing support
    • (1) Turntable spacer and mounting kit
    • Dimensions = 4.5in X 4.5in X 1.70in (11.43cm X 11.43cm X 4.31cm)
    • Mounting Tabs - 5.25in.(13.33cm) center to center
    • Material - Aluminum
    • Finish - Hard Anodized Black
    With R-Type Servo
    $639.00
    Purchase
    With T-Type Servo
    $629.00
    Purchase
    Hardware Kit Only
    $169.00
    Purchase

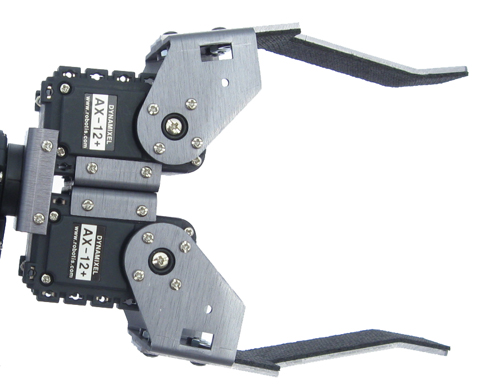

  • AX-12A Dual Gripper Kit

    Dual Gripper Kit

    • (1) AX-12A / 18A Dual Gripper Hardware kit
    • Dual gripping power driven by (2) servos
    • Up to a 9in (22.86cm) gripper opening
    AX-12A/AX-18A Dual Gripper Information
    With AX-18A Servo
    $249.99
    Purchase
    With AX-12A Servo
    $149.99
    Purchase
    No Servo
    $69.00
    Purchase
  • Big Grip Hardware Kit (bgh)

    Big Grip Kit

    • (1) Big Grip aluminum hardware kit
    AX-12A/AX-18A Big Gripper Information
    With AX-18A Servo
    $149.00
    Purchase
    With AX-12A Servo
    $99.00
    Purchase
    No Servo
    $69.00
    Purchase
  • Wrist Adapter to Dual Gripper Adapter

    Wrist to Dual Gripper Adapter

    • (1) Wrist To Dual Gripper Adapter Bracket
    • This bracket is required when adding the dual gripper kit to either the RX/MX-28 or RX/MX-64 / 106 Wrist Roatate kits
    No Servo
    $12.99
    Purchase

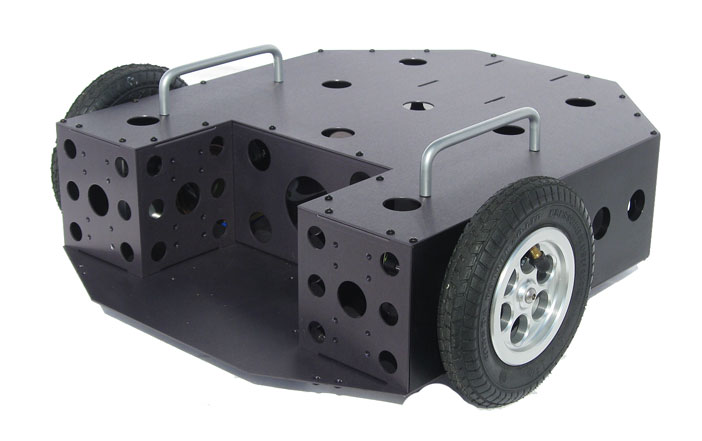

  • Nomad Rover

    NomadFK

    Go mobile with the Nomad Rover! The Nomad Rover was designed for the SG, AX and Pro series of robotic arms and installs in seconds with just 3 screws! For more information, visit the Nomad Rover product page

    • (1) Nomad Rover Hardware kit
    • (1) Parallax Wheel kit
    • (1) Parallax Caster Wheel kit
    • (1) Nomad Rover Construction Guide
    $799.00
    Purchase

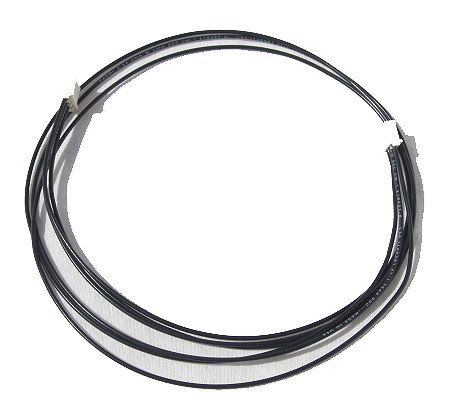

  • 12in. (30.48cm) 3-pin wire extension

    12in. (30.48cm) 3-pin wire extension

    • (1) 12in. (30.48cm) 3-pin wire extension
    • This wrie extensions can be used with the AX-12A, AX-18A, MX-28T, MX-64T and MX-106T Actuators
    $6.49
    Purchase
  • 24in. (60.96cm) 3-pin wire extension

    24in. (60.96cm) 3-pin wire extension

    • (1) 24in. (60.96cm) 3-pin wire extension
    • This wrie extensions can be used with the AX-12A, AX-18A, MX-28T, MX-64T and MX-106T Actuators
    $10.00
    Purchase
  • 12in.(30.48cm) 4-pin wire extension

    12in. (30.48cm) 4-pin wire extension

    • (1) 12in. (30.48cm) 4-pin wire extension
    • This wrie extensions can be used with the MX-28R, MX-64R and MX-106R Actuators
    $11.99
    Purchase
  • 20in.(50.8cm) 4-pin wire extension

    20in. (50.8cm) 4-pin wire extension

    • (1) 20in. (50.8cm) 4-pin wire extension
    • This wrie extensions can be used with the MX-28R, MX-64R and MX-106R Actuators
    $13.99
    Purchase
  • Pro-Series Power Supply

    Pro-Series Power Supply

    12 Volt/5amp power supply provides plenty of power for the Pro-Series Robotic Arm Components

    • (1) 12 Volt/5Amp Power Supply (optional Power Harness Below)
    $89.00
    Purchase
  • Power Harness

    Power Harness

    The power harness makes powering the Crustcrawler Pro Series Smart Robotic Arm quick and easy!

    • Compatible with the 3-pin TTL actuators - AX-12A, AX-18A, MX-28T, MX-64T, MX-106T
    • (1) Power Harness
    • (1) 2.1mm male P5 barrel plug
    • (2) 3 pin molex connectors for easy AX/MX Actuator and USB2Dynamixel / processor connections
    $19.00
    Purchase
